Mixers

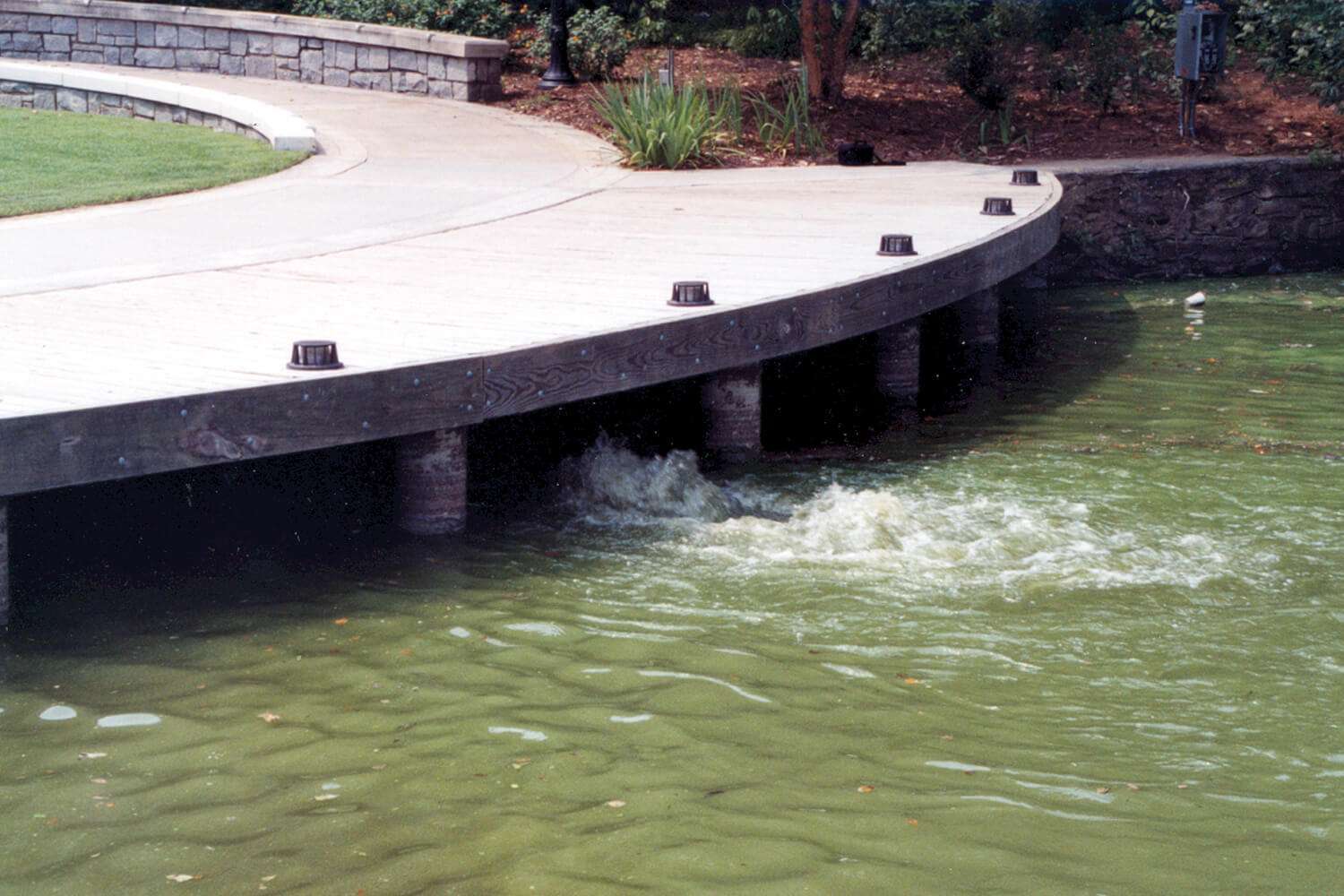

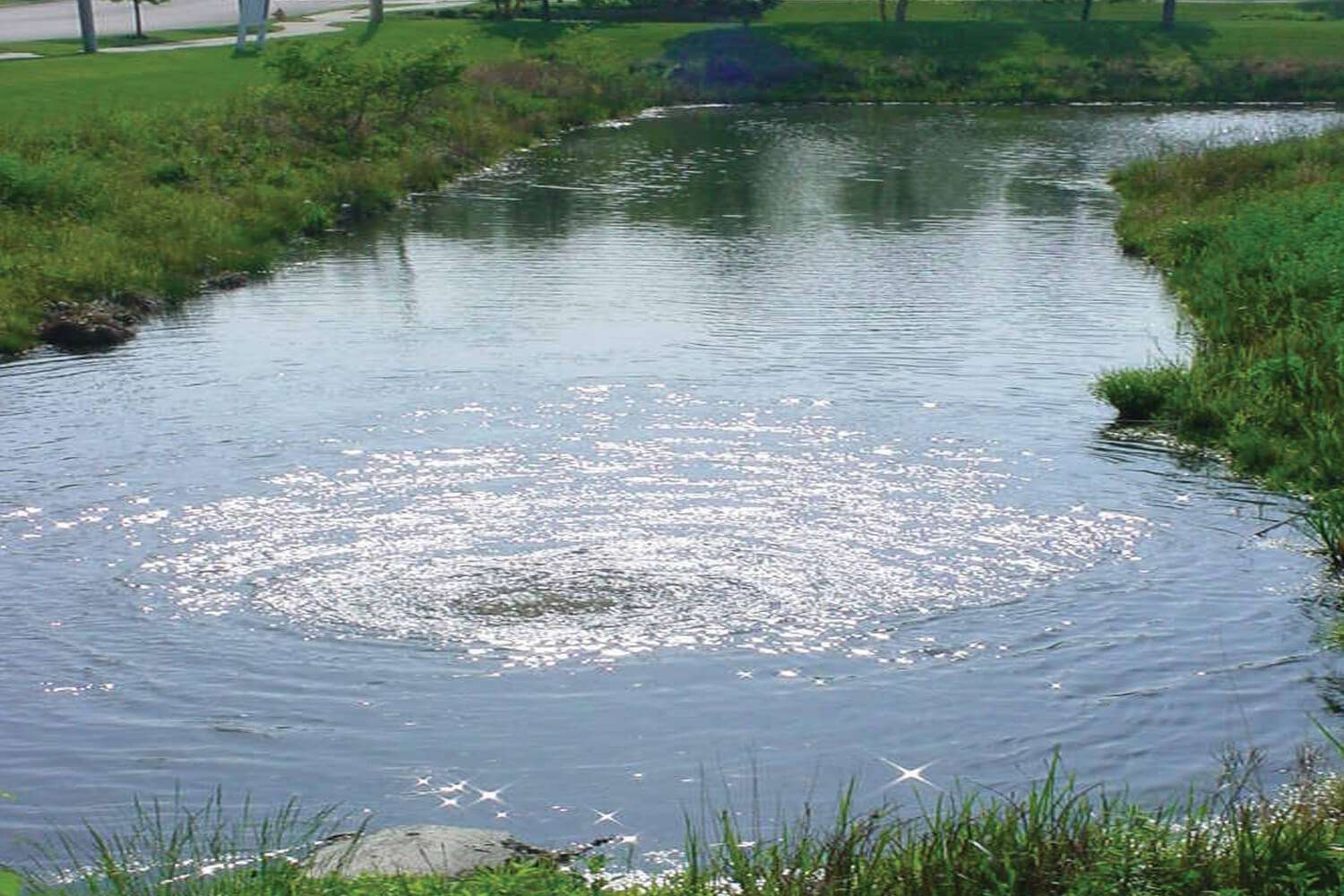

The Mixer offers incredible pumping rates and is ideal for shallow areas, coastlines, or wherever horizontal flow and circulation is needed. This subsurface industrial aerator is available in a floating (Triton) or submerged (Sub-Triton) configuration.

Features

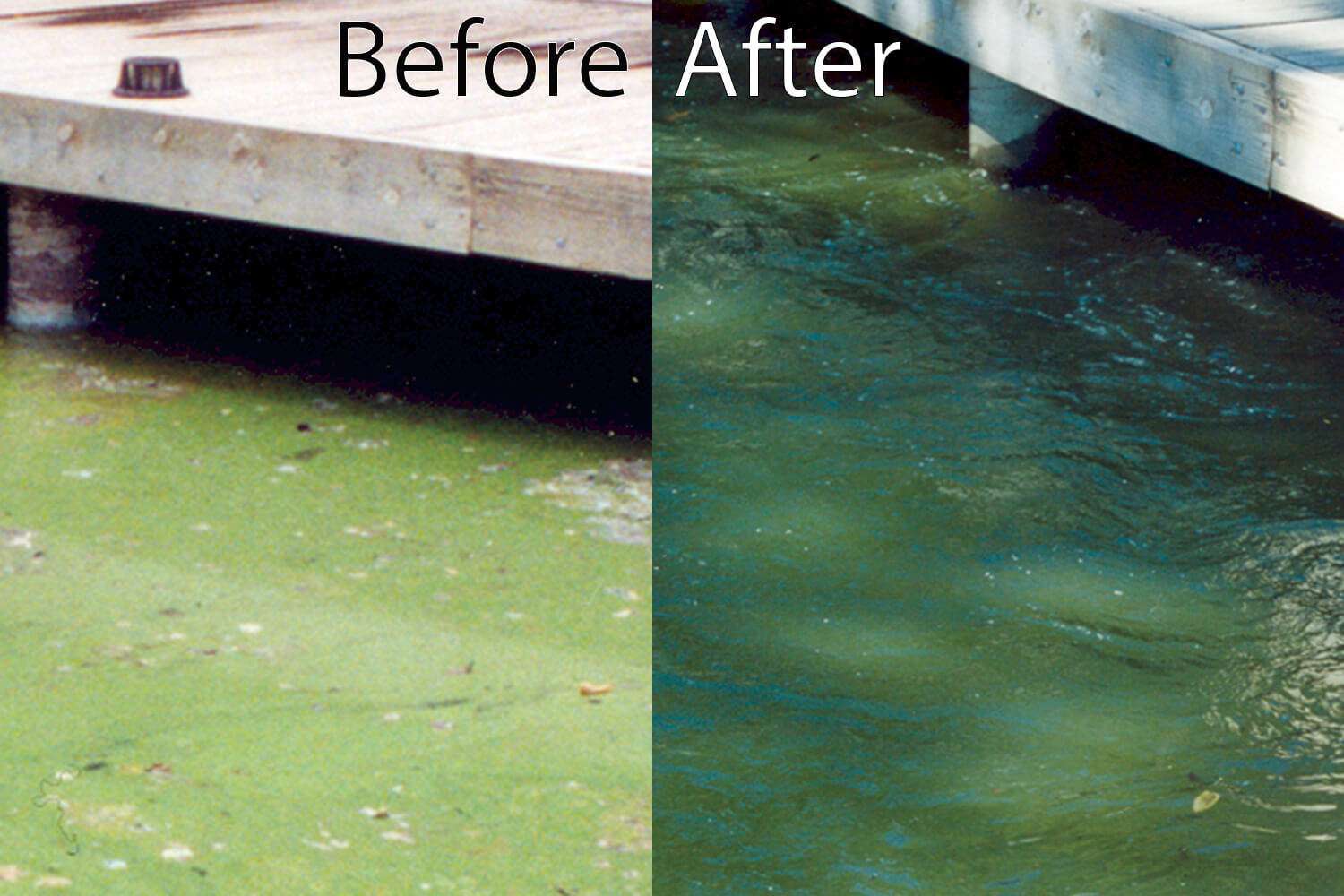

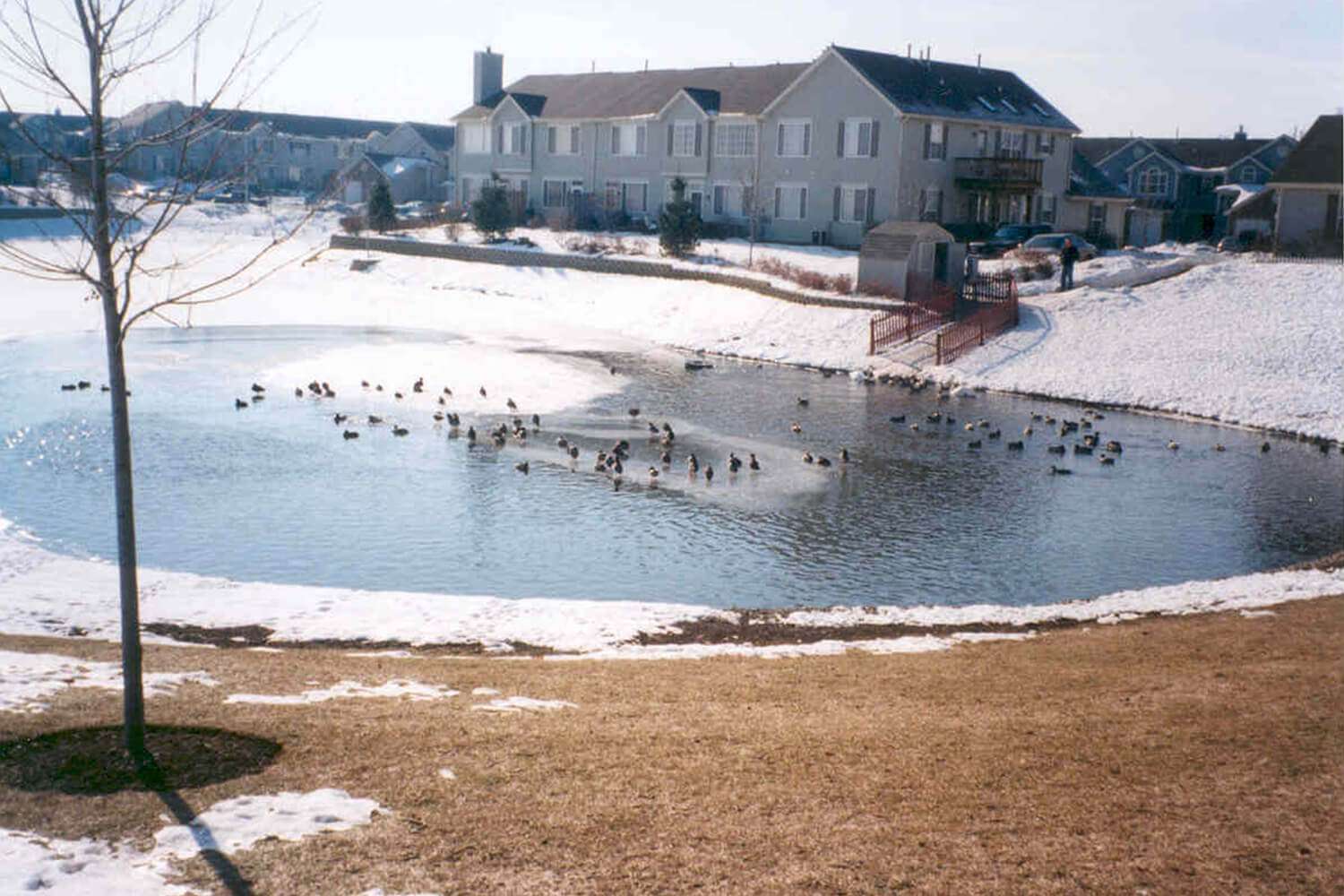

Otterbine’s Mixer system is ideal for creating horizontal circulation in ponds and lakes to break up stagnant waters or keep shorelines open.

Specifications

View the product specifications.

Unit Design

Otterbine Industrial Aerators have been designed and engineered by expert craftsman to provide a high quality, ease of use product that delivers results in severe aquatic environments.

Installation

The Mixer arrives partially assembled and installation can be performed in just a few steps.

Maintenance & Winterisation

Otterbine Mixers require minimal maintenance to ensure years of dependable service.

Features

Otterbine’s Mixer system is ideal for creating horizontal circulation in ponds and lakes to break up stagnant waters or keep shorelines open. Backed by a comprehensive 3-year warranty, check out some of these other great features:

Energy Efficient

Low amperage systems mean less electrical consumption and low running costs.

Complete Package

Most systems come complete with unit, power control centre, and cable with cable quick disconnect for ease of installation.

Proven Performance

Otterbine is the only manufacturer to have oxygen transfer and pumping rates independently tested and published on their aeration systems.

Shallow Operating Depth

Triton Mixer operates in 3ft or 92cm, while Sub-Tritons require 2.5ft or 76cm of water depth.

Versatile

Available in both floating (Triton) and submerged (Sub-Triton) configurations.

Safety Listed & Protected

Package electrically safety tested and listed with ETL, ETL-C. Products for European Union are also safety tested, approved and carry a 3rd party independent CE mark.

Specifications

60Hz	1HP	2HP	3HP
Volume (ft3) Influenced	490,000	980,000	1,470,000
Voltage/Phase/Amp 1725rpm@60Hz	115/1/12.6 230/1/6.5	230/1/11.5	230/1/13.7 230/3/8.8 460/3/4.2

50Hz	1HP	2HP	3HP
Volume (m3) Influenced	12,488	24,976	37,463
Voltage/Phase/Amp 1425rpm@50Hz	230/1/7.3	230/1/12	230/1/12.5 400/3/4.3

Unit shipped complete with unit, cable and Power Control Center. 50Hz applications do not receive a Power Control Center. Unit average weight is 204 lbs or 93 kg. Minimum operating depth is 3ft or 92cm for Triton, 2.5ft or 76cm for Sub-Triton. Pond volume influenced based on empirical data obtained over a 40 minute test period and may vary due to voltage, elevation and relative humidity.

Unit Design

Otterbine Industrial Aerators have been designed and engineered by expert craftsman to provide a high quality, ease of use product that delivers results in severe aquatic environments.

All components are manufactured of stainless steel or thermoplastics for use in brackish and effluent waters.

Protective arms secure motor unit and allow for easy handling.

Protective arms secure unit, while a low-speed custom built motor is designed to perform in severe aquatic environments.

Rugged closed cell foam filled low visibility polyethylene float.
Precision pitched stainless steel impeller is virtually unbreakable.
Protective arms secure motor unit and allow for easy handling.
Electrical disconnect is part of upper plate to prevent accidental damage.
Adjustable brackets allow you to control the angle oxygen is released into the water column. (Sub-Triton models only)
Enclosed in a corrosion resistant, durable 18 gauge/316 grade stainless steel motor housing, the oil-cooled, efficient 1725/1425 RPM custom built motor has dynamically balanced rotors to move high volumes of water.

Installation

The Mixer arrives partially assembled and installation can be performed in just a few steps. Installation varies slightly depending on the configuration ordered; floating (Triton Mixer) or submerged (Sub-Triton Mixer).

Install Power Control Center

Power control centre is mounted onshore; a certified electrician is recommended to perform this step.

Lay Power Cable

Bury/trench power in conduit to pond edge, connect plug to unit.

(Triton Mixer) Float System in Water & Moor into Place

A three-point mooring system is recommended. Arrows illustrate the direction of water current. (The use of a boat may be required)

(Sub-Triton Mixer) Moor & Secure into Place

Although mounted on the pond bottom, these units should be moored to secure placement. A three-point mooring system is recommended when places in moving water. Arrows illustrate the direction of water current (the use of a boat may be required).
