Fountain Glo™ MAXI-RGBW Lighting

Our RGBW system brings ultra-bright and compact colour changing LEDs to the Otterbine family. Featured in a 4-light set, we offer both 40 and 80-watt emitters with 24 pre-programmed sequences covering all major seasons and holidays!

Features

Our colour changing RGBW LED lights put out vibrant and bright colours all while being energy efficient! Each light set is backed by a 1-year warranty, comes with 24 pre-programmed sequences, and offers these additional features:

Cost Effective

Integrated DC Power Supply allows for cleaner power and longer cable runs with smaller cable gauge.

Versatile

RGBW Light Sets can be added to ANY Otterbine Fountain or Aerator System! This includes retrofitting a set to work with older units!

Convenient

All RGBW light sets come standard with shore mounted transformer and cable quick disconnect feature.

Amazing Displays

Create dramatic effects with 24 factory programmed colour sequences or contact us about getting your own custom sequence!

Safety Listed & Protected

Our entire lighting package complies with UL 1838, this includes: the 4-Light Sequencing Set, NEMA 4X Fiberglass Power Control Center and Controller Box, and Cable.

Long Lasting

These lights last for up to 70,000 operating hours- that’s 8 years!

Specifications

Lights (40W & 80W)

40W

80W

Amp Draw

1.9

4.2

Output Electrical Rating

30DVC

30DVC

Lamp Wattage (Total)

150

331

Max Cable Run (12/5)

600ft (183m)

400ft (122m)

Max Cable Run (10/5)

1000ft (305m)

700ft (213m)

Unit Design

All Light Fixtures are constructed of high quality 304 Stainless Steel!

This system operates off of 115V in 60Hz markets (230V in 50Hz)!

These lights boast up to 70,000 hours of operating time! That’s 8 years!

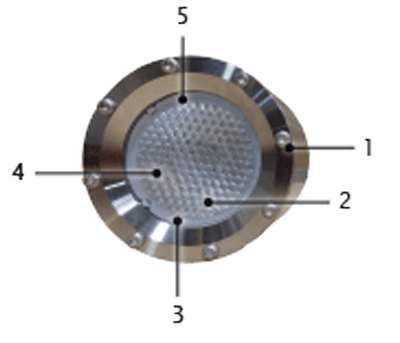

  1. High quality 304 stainless steel housing.
  2. 32 degree lens that creates a wide-floodlight beam spread.
  3. Water tight seal protects lamps from water intrusion.
  4. 4-channel MCPCB RGBW LED emitters offer high efficiency and uniformity color mixing lenses with TIR optics.
  5. 40 or 80W lamp fixtures available.

Installation

The RGBW Sequencing Lights arrive fully assembled but you must mount the lights and controller box to the unit.

1

Attach Light Fixtures & Controller Box

2

Connect to Power

3

Enjoy some Amazing Displays

Maintenance

No annual maintenance is required, periodically clean the lens of any debris and check power cords for any damage. Always disconnect power from the lights before inspecting. Should you encounter any problems with the lights DO NOT open the controller box. Please contact your local service centre for further instruction.
