Fountain Glo™ LED Lighting

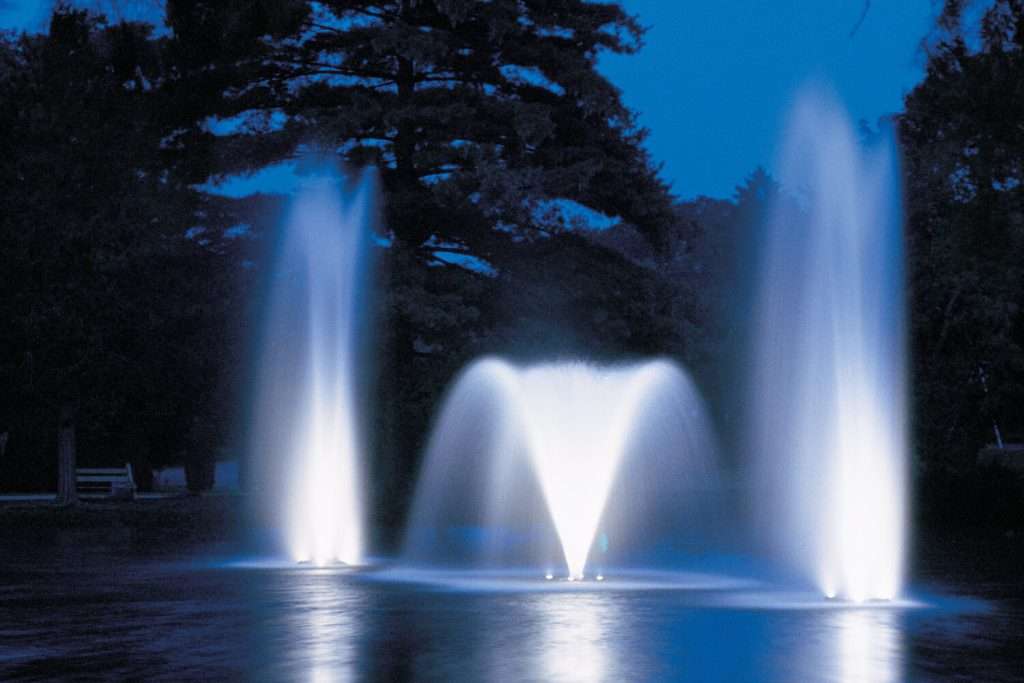

These energy efficient LED light systems are the most popular addition to our aerator and fountain systems. Featuring light sets from 2 to 16 lights, each are engineered to provide optimal illumination to our spray patterns; creating rich, vibrant displays into the night.
Features
These low energy, 6.5W LED high output lighting systems offer an 80% energy savings over traditional MR16 halogen lights. Each light set is backed by a 3-year warranty (excluding bulbs) and offers these additional features:
Specifications
Lights (6.5W LED) | 2* | 2 | 4 | 6 | 8** | 12** | 16** |
|---|---|---|---|---|---|---|---|
Amp Draw | .15 | 0.18 | .35 | 0.53 | 0.7 | 1.06 | 1.44 |
Output Electrical Rating | 12VDC | 15VDC | 15VDC | 15VDC | 15VDC | 15VDC | 15VDC |
Lamp Wattage (Total) | 13 | 13 | 26 | 39 | 52 | 78 | 104 |
Max Cable Run (16/2) | 150ft (46m) | 650ft (198m) | 325ft (99m) | 225ft (69m) | 325ft (99m) | 225ft (69m) | 325ft (99m) |
Max Cable Run (12/3) | 300ft (91m) | 1000ft (305m) | 700ft (213m) | 525ft (160m) | 700ft (213m) | 525ft (160m) | 700ft (213m) |
Light systems comply with UL 1838. Products for European Union are safety tested, approved and carry a 3rd party independent CE mark. *Used on 1/2HP & 3/4HP units. **Requires two cable runs. 50Hz amp draw will be half of what is listed in charts.

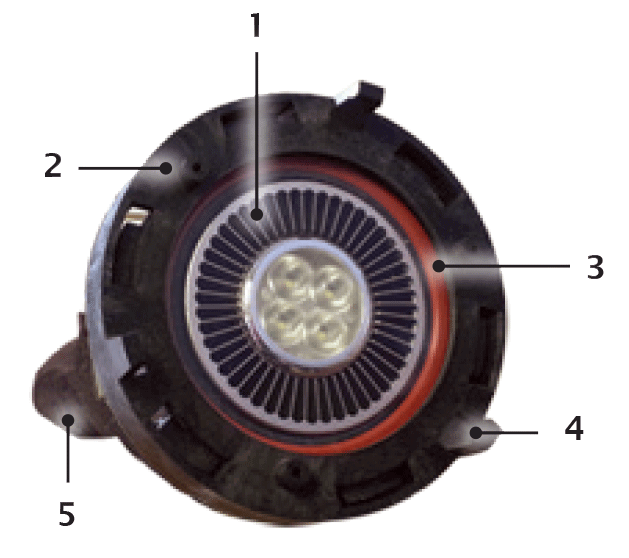

Unit Design
Installation
The LED light set arrives fully assembled but must be mounted to the aerator/fountain system. Brackets are adjustable allowing you to pivot the fixture for optimal lighting.
If coloured lenses are ordered, simply snap them onto the top of the light housings.
Attach Light Fixtures
Connect to Power
Adjust Angle of Fixture
Maintenance
No annual maintenance required, periodically clean the glass lens of any debris and check the power cords for any damage. Always disconnect power from the light when performing maintenance.
