Fountain Glo™ MIDI-RGBW Lighting

Otterbine’s latest RGBW system brings rich and compact colour-changing LEDs to Otterbine’s 1-5HP Units! Featured as part of a 3,4,6, or 8-light set this kit opens a whole new range of possibilities for the world of lake and pond fountain lighting!

Play
Features

There are thousands of colours to choose from as you create dramatic displays for your Otterbine Aerating Fountain.

Specifications

View the product specifications.

Unit Design

View the design details.

Installation

The Midi-RGBW light set arrives fully assembled but must be mounted to the aerator/fountain system.

Maintenance & Winterisation

No annual maintenance is required, periodically clean the lens of any debris and check power cords for any damage.

Related Documents

View CE manuals and other related documents on Otterbine’s US site.

Features

Light up your night with Otterbine! There are thousands of colours to choose from as you create dramatic displays for your Otterbine Aerating Fountain.

Pre-Programmed Sequences

Light sets come loaded with pre-programmed sequences, which means you just have to plug them in! There are several colour combinations ready for you to enjoy.

Handheld Remote

Light sets come with a handheld remote making them user-friendly and easy to use! The remotes control range is between 150ft (50m) and 800ft (244m)*

Temperature & Vibrancy

One of the features of Otterbine’s latest light set is that users can customize the temperature and vibrancy of their lights’ colours!

304 Stainless Steel

Units are constructed out of 304-grade stainless steel.

2-Year Warranty

The Midi-RGBW lights are backed by a 2-year warranty. Have a problem? Don’t worry contact your local Otterbine service centre and we’ll get your lights back up and running in no time!

Long Lasting

These lights last for up to 50,000 operating hours!

*150ft (50m) is the manufacturer guaranteed control distance.

Specifications

Lights (9W)

2

3

4

6

8*

16/2 Cable Max Length

650ft (198m)

500ft (152m)

325ft (99m)

225ft (69m)

325ft (99m)

12/3 Cable Max Length

1000ft (305m)

850ft (259m)

700ft (213m)

525ft (160m)

700ft (213m)

Input Electrical Rating



115V (60Hz)

&

220V (50Hz)



Output Electrical Rating





24VDC





*8 Light sets require two cable runs.

Unit Design

All Light Fixtures are constructed of high quality 304 Stainless Steel!

This system operates off of 115V in 60Hz markets (230V in 50Hz)!

These lights are back by a 2-year warranty. Have a problem? Contact your local Otterbine Service Center and we’ll get everything back up and running in no time!

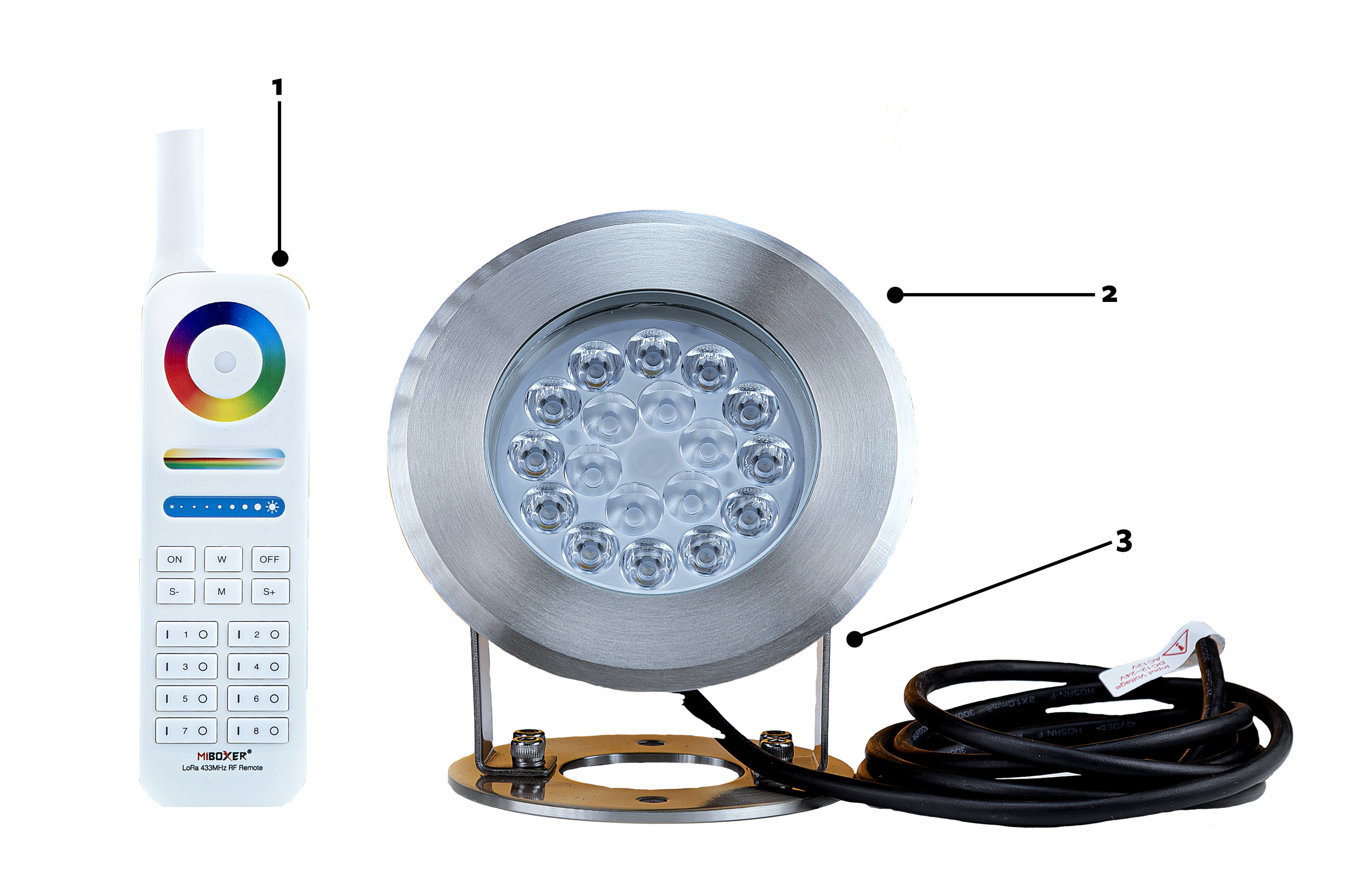

  1. A remote to color sequences, vibrancy, and temperature. Range is limited between150ft (50m) to 800ft (244m)*.
  2. LED emitters that create thousands of rich color combinations.
  3. Adjustable mounting brackets to make sure the light hits your fountain just right!

*150ft (50m) is the manufacturer guaranteed control distance.

Installation

The Midi-RGBW light set arrives fully assembled but must be mounted to the aerator/fountain system. Brackets are adjustable allowing you to pivot the fixture for optimal lighting.

1

Attach Light Fixtures To Unit Float/Stand

2

Connect to Power Cables to Lights and to the Power Source

3

Adjust Angle of Fixtures to Best Illuminate the Spray Pattern

4

Enjoy Dynamic Displays

Maintenance

No annual maintenance is required, periodically clean the lens of any debris and check power cords for any damage. Always disconnect power from the lights before inspecting. Should you encounter any problems with the lights – please contact your local service centre for further instruction.

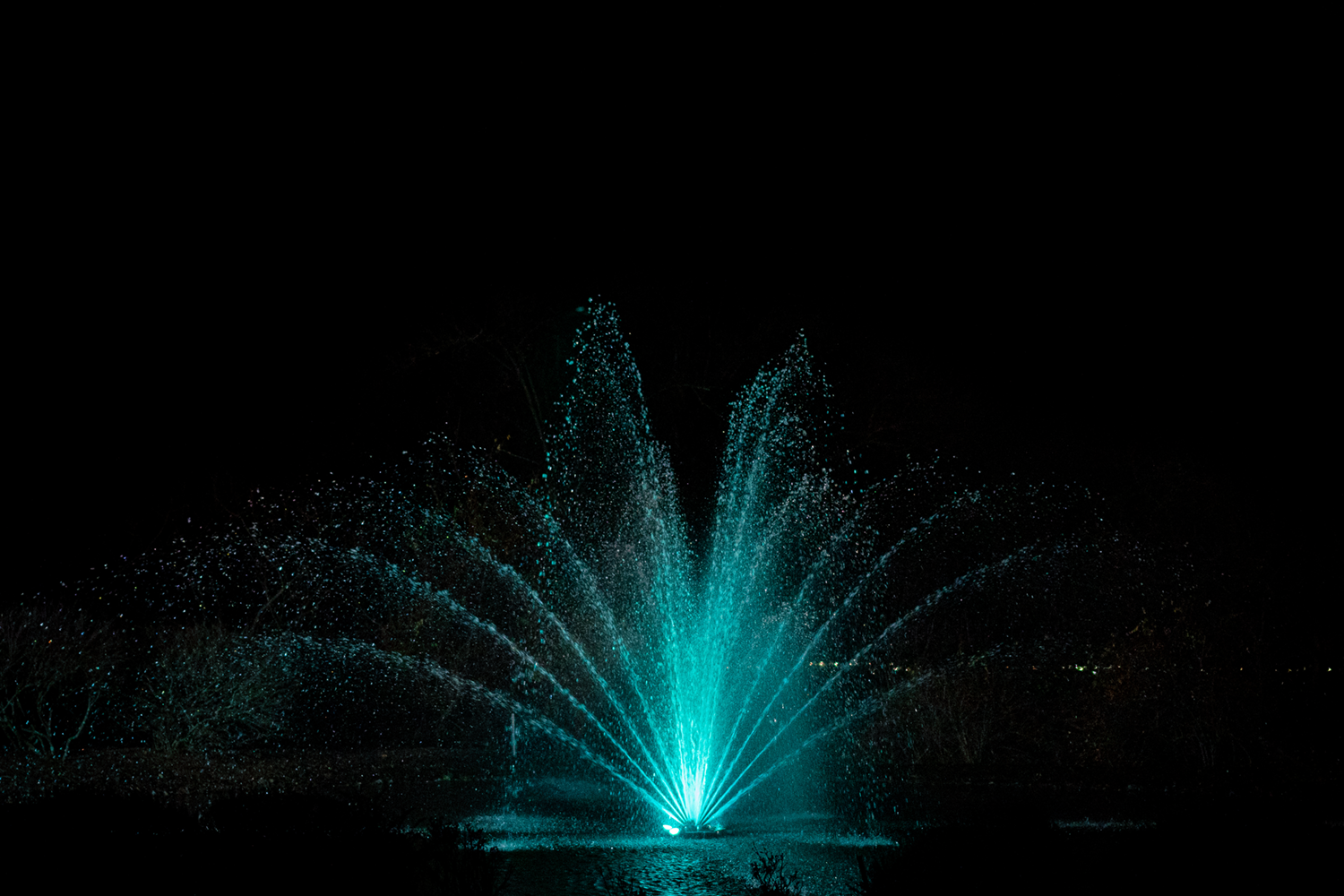

  • Otterbine MIDI-RGBW fountain illuminated with turquoise blue light jets

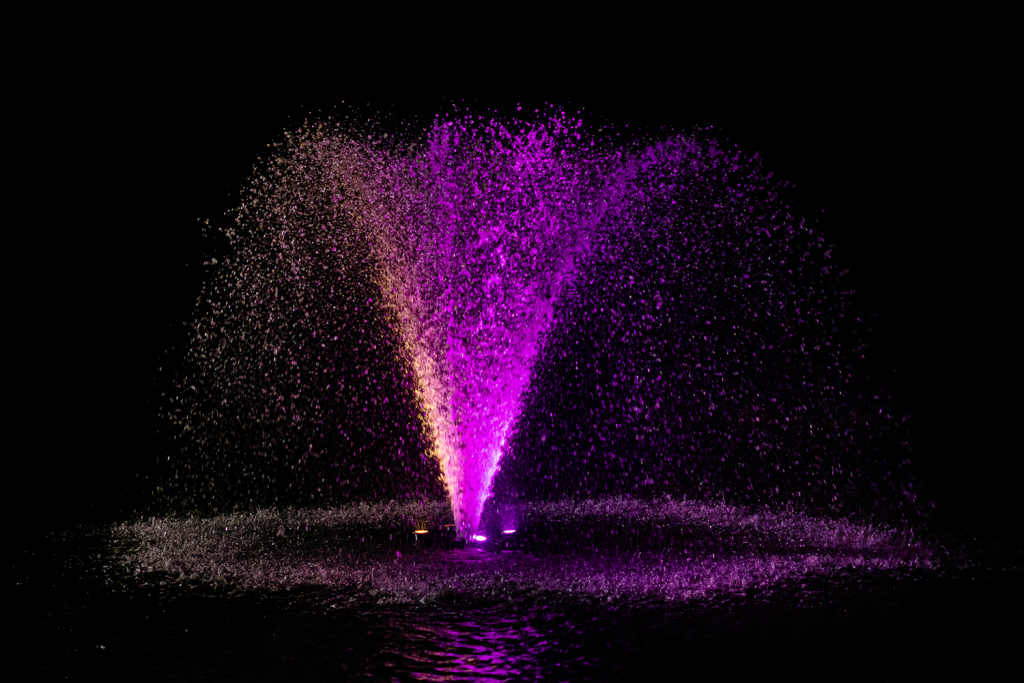

  • Otterbine MIDI-RGBW fountain lit with pink and orange dual colour lighting

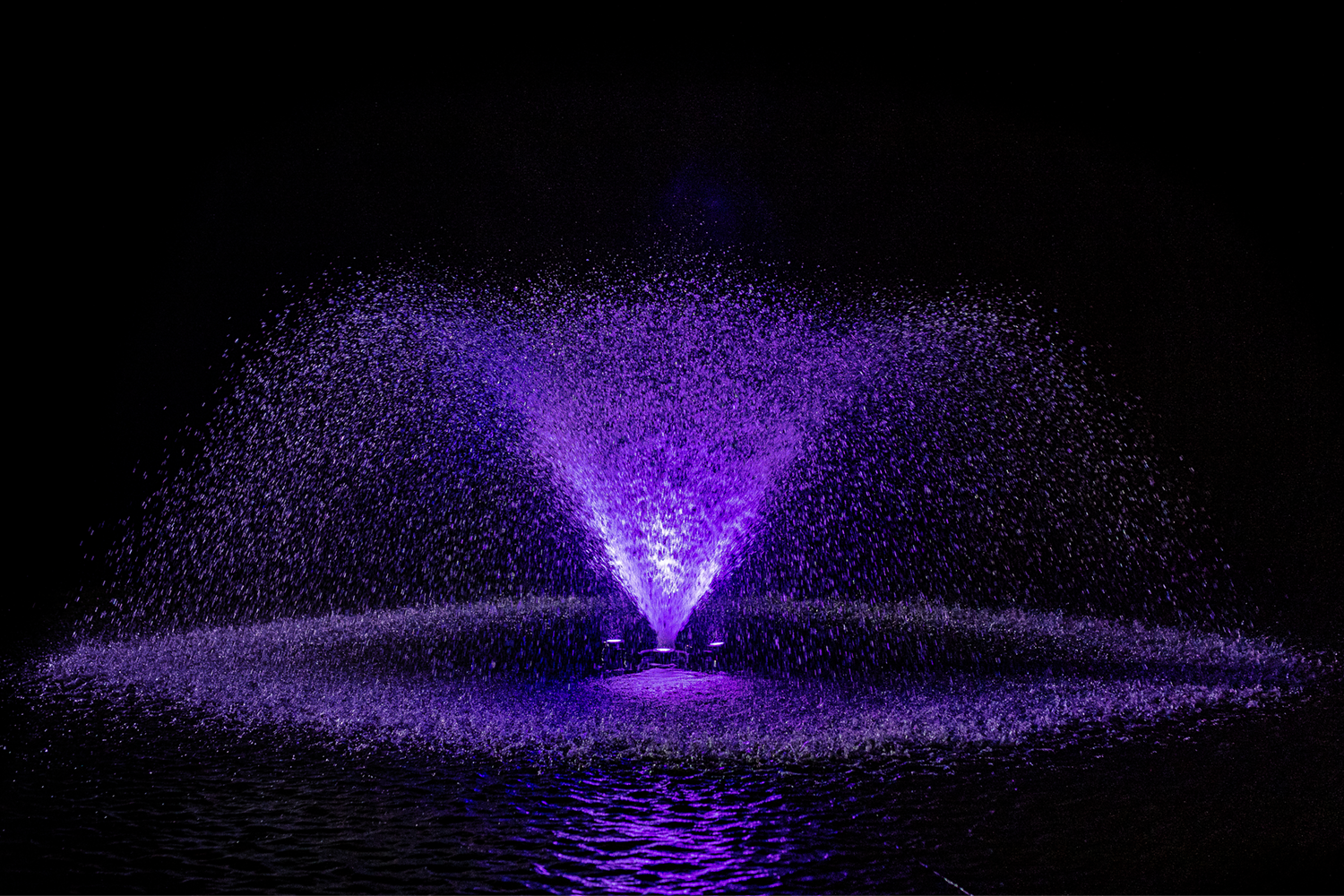

  • Otterbine MIDI-RGBW fountain featuring striking purple light display at night

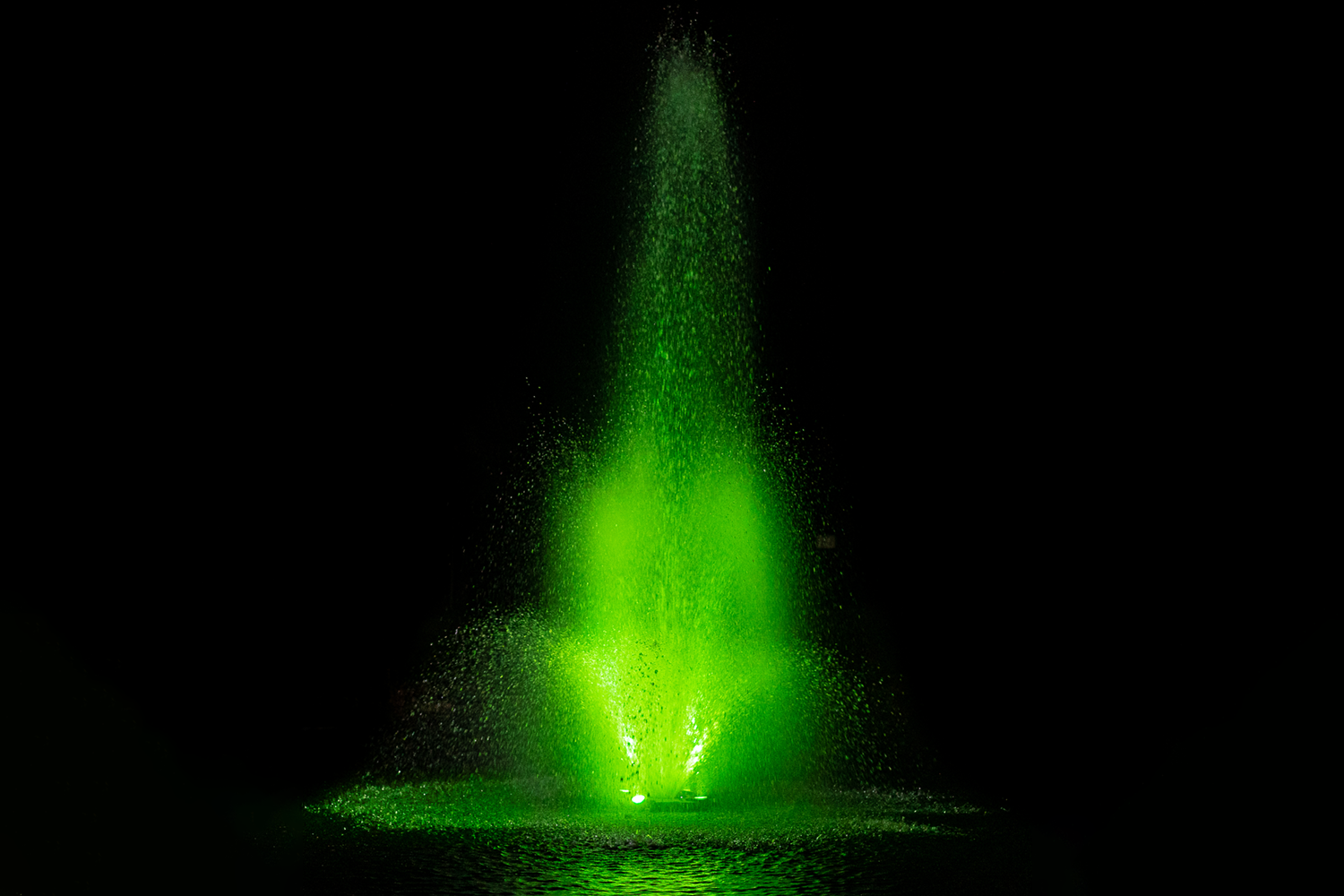

  • Otterbine MIDI-RGBW fountain highlighted with vivid lime green lighting in water spray
