Phoenix Aerating Fountain

The Phoenix’s two-tiered pattern combines aesthetics with aeration, and is popular in commercial and residential settings alike. Systems range in size from 1HP-5HP, all with a 5 year warranty.

Play
Features

Offering the industry’s strongest, most comprehensive 5-year warranty, our Aerating Fountains are backed by a “Pattern Guarantee”, if you don’t love the pattern we’ll swap it out for another!

Specifications

View the product specifications.

Unit Design

The Concept 3 Aerating Fountains have been designed and engineered by expert craftsman to provide a high quality, ease of use product that delivers results.

Installation

The Phoenix arrives partially assembled and installation can be performed in just a few steps.

Maintenance & Winterisation

Aerating Fountains require minimal maintenance to insure years of dependable service.

Related Documents

View CE manuals and other related documents. Click to be transferred to the download centre of Otterbine’s US site.

Features

Offering the industry’s strongest, most comprehensive 5-year warranty, our Aerating Fountains are backed by a “Pattern Guarantee”, if you don’t love the pattern, we’ll swap it out for another! Check out these other great features:

Complete Package

Most systems come complete with unit, power control centre, and cable with cable quick disconnect standard for ease of installation.

Proven Performance

Otterbine is the only manufacturer to have oxygen transfer and pumping rates independently tested and published on their aeration systems.

Shallow Operating Depth

Operates in 30in or 75cm of water.


Safety Listed & Protected

Package electrically safety tested and listed with ETL & ETL-C. Products for European Union are also safety tested, approved and carry a 3rd party independent CE mark.

Natural & Effective Water Quality Solutions

Introduces oxygen into the water for a natural solution to water quality management; effectively controlling algae, aquatic weeds, and odours.

Energy Efficient

Low amperage systems mean less electrical consumption and low running costs.

Specifications

60Hz

1HP

2HP

3HP

5HP

Spray Height (ft)

Upper: 8 Lower: 4

Upper: 11 Lower: 6

Upper: 15 Lower: 9

Upper: 18 Lower: 10

Spray Diameter (ft)

Upper: 2 Lower: 14

Upper: 2 Lower: 20

Upper: 3 Lower: 28

Upper: 3 Lower: 34

GPM

150

210

275

400

Voltage/Phase/Amp 3450rpm@60Hz

115/1/15 230/1/7.5

230/1/12.4

230/1/14 230/3/8.6 460/3/4.3

230/1/23 230/3/13.4 460/3/7.2

50Hz

1HP

2HP

3HP

5HP

Spray Height (m)

Upper: 3 Lower: 1.2

Upper: 4 Lower: 1.8

Upper: 4.2 Lower: 2

Upper: 4.2 Lower: 2

Spray Diameter (m)

Upper: 0.6 Lower: 5.5

Upper: 0.6 Lower: 6.4

Upper: 0.9 Lower: 7.2

Upper: 0.9 Lower: 7.2

m3/hr

32.4

45.3

59.3

59.3

Voltage/Phase/Amp 2875rpm@50Hz

230/1/8.3

230/1/12.6

230/1/13.5 400/3/4

400/3/4

Unit shipped complete with unit, cable and Power Control Center. 50Hz applications do not receive a Power Control Center. Unit average weight is 155 lbs or 73 kg. Minimum operating depth is 30in or 75cm. Spray performance and pumping rates are approximate and may vary due to voltage, elevation and relative humidity.

Unit Design

The Concept 3 Aerating Fountains have been designed and engineered by expert craftsman to provide a high quality, ease of use product that delivers results.

All components are manufactured of stainless steel or thermoplastics for use in brackish and effluent waters.

Smaller and lighter, with handles moulded into the float for easier manoeuvrability, installation & storage.

Staged pumping chambers provide an option to change patterns in less than 30 minutes.

All metric fasteners and only three tools needed to work on the entire unit.

  1. High-tech thermal plastic pumping chambers are staged to allow for easy interchange.
  2. Rugged low visibility closed cell foam filled includes handles and protective pockets for lights when applicable.
  3. Mixed flow pumping systems achieves maximum pumping capacities.
  4. Electrical quick disconnect is part of the upper plate to prevent damage.
  5. Industrial strength thermal plastic screen helps keep debris out of the unit.
  6. Oil cooled, efficient 3450/2875 RPM custom built motor incorporates a g-type seal to ensure dependability and long life.
  7. Corrosion resistant, durable 18 gauge/316 grade stainless steel motor housing.

Complete package is electrically safety tested and listed with ETL, ETL-C and CE, and includes unit, cable and power control centre. 50Hz units do not receive power control centre.

Installation

The Phoenix arrives partially assembled and installation can be performed in just a few steps.

1

Install Power Control Center

Power control centre is mounted onshore; a certified electrician is recommended to perform this step.

2

Lay Power Cable

Bury/trench power in conduit to pond edge, connect plug to unit.

3

Float System in Water & Anchor/Moor into Place

Depending on method selected, the use of a boat may be required.

  • Mooring
    Mooring
  • Anchor
    Anchor

Maintenance & Winterisation

Aerating Fountains require minimal maintenance, to ensure years of dependable service we recommend the following:

These units can remain in the water during the winter but need to run a minimum of 12 hours per day; if temperatures drop BELOW 20° Fahrenheit or -7° Celsius they need to be run 24 HOURS A DAY.
NOTE: Units should never be stored upside down.

Disconnect unit from power and physically inspect aerator, float and electrical cable.

An oil change is suggested to keep your aerator running smoothly.

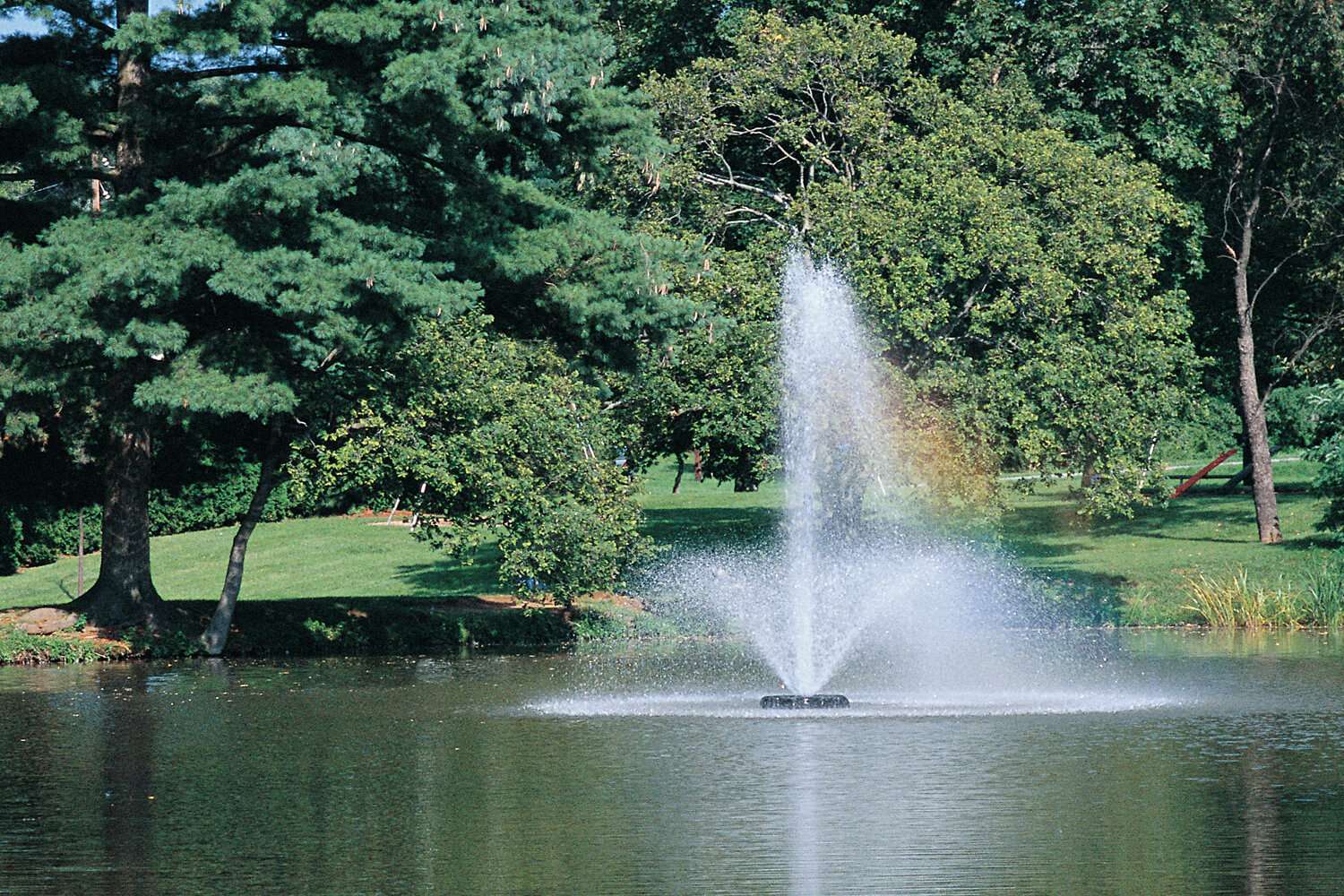

  • Fountain spraying water in a lush green park.

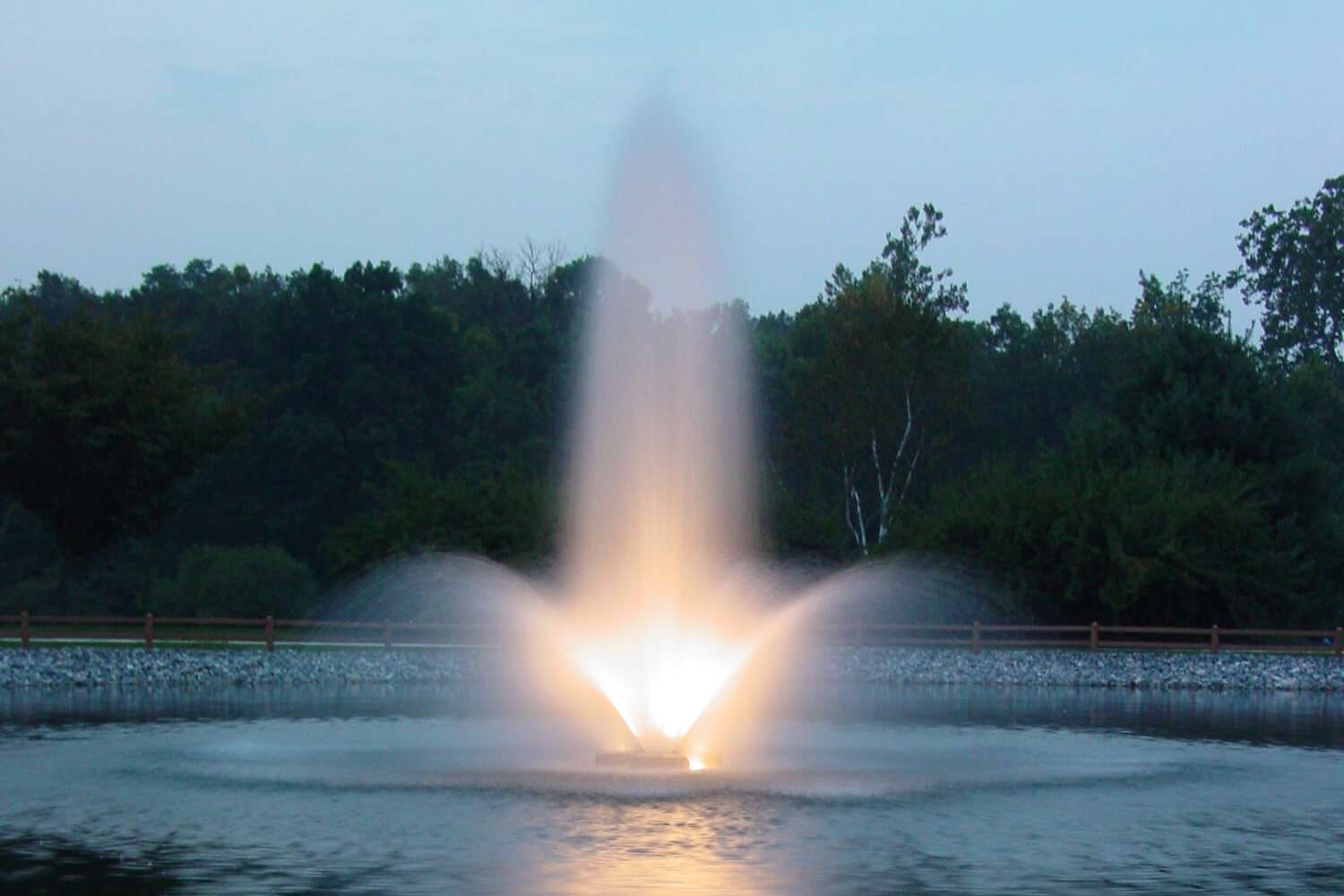

  • Illuminated fountain spraying water in a tranquil pond.

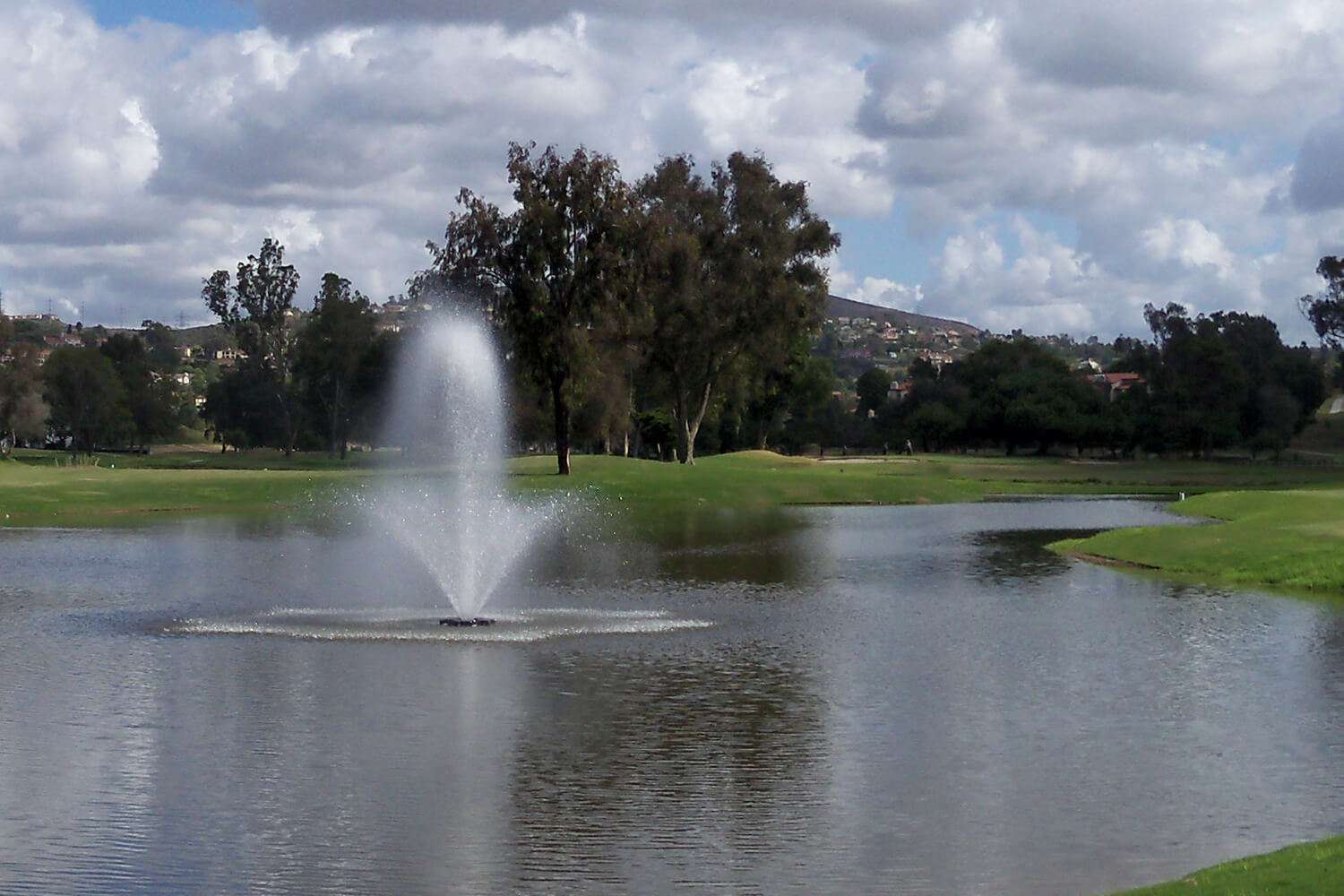

  • Fountain spraying water in a serene pond surrounded by trees.
  • Fountain in pond with trees and cloudy sky.

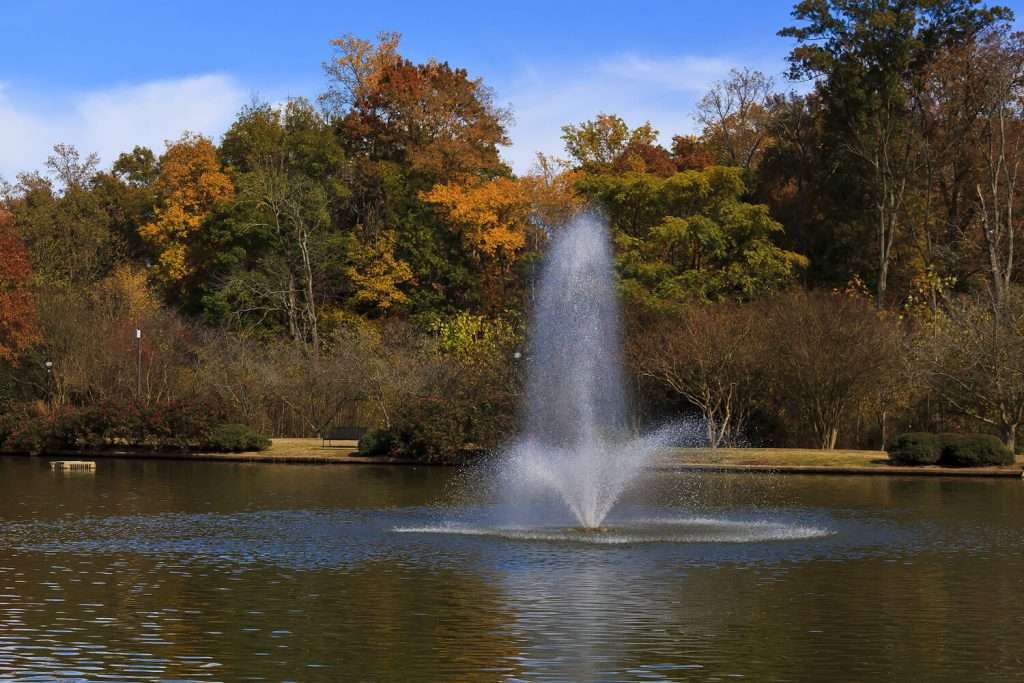

  • Fountain in lake with autumn trees in background.
